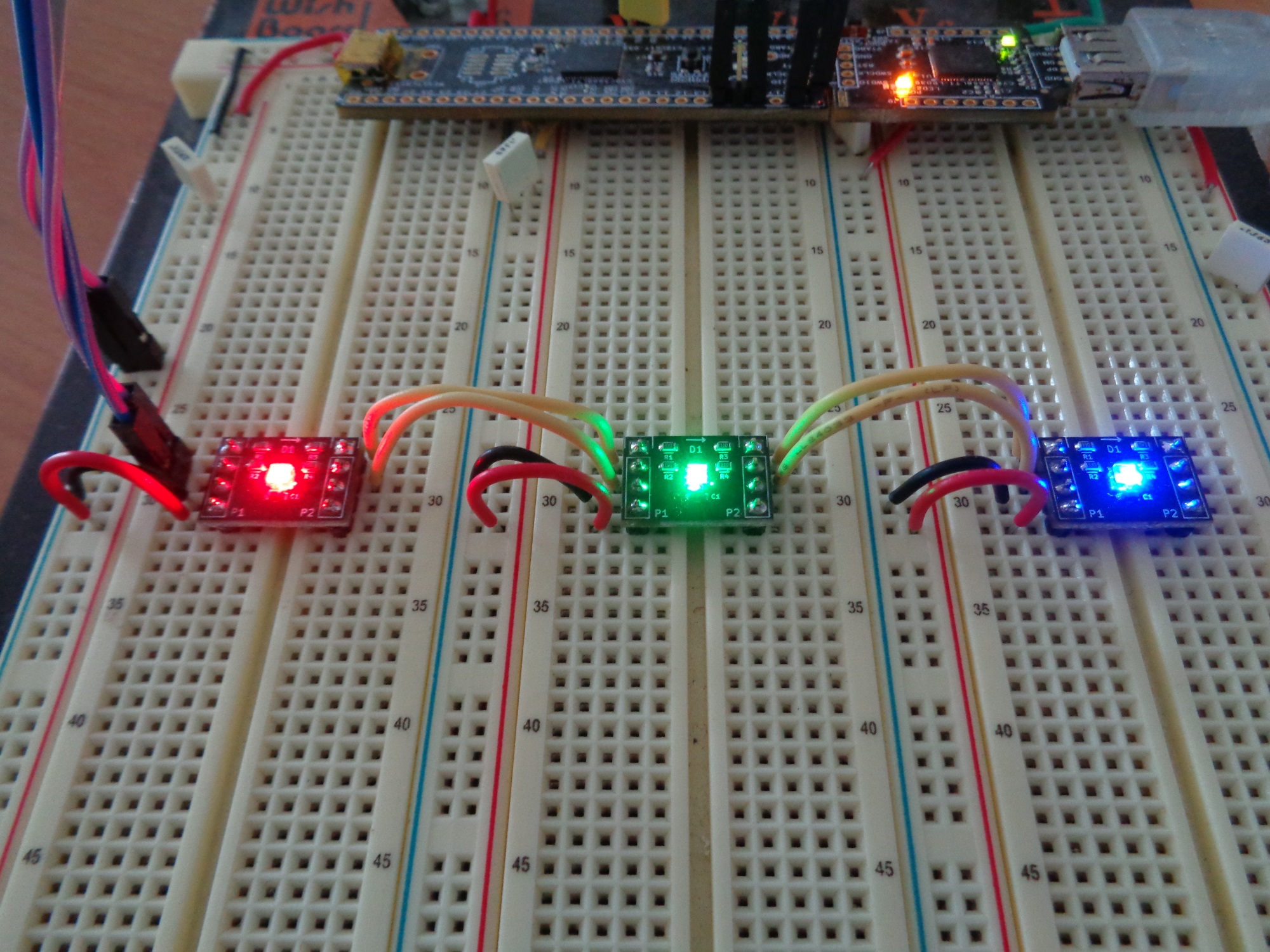

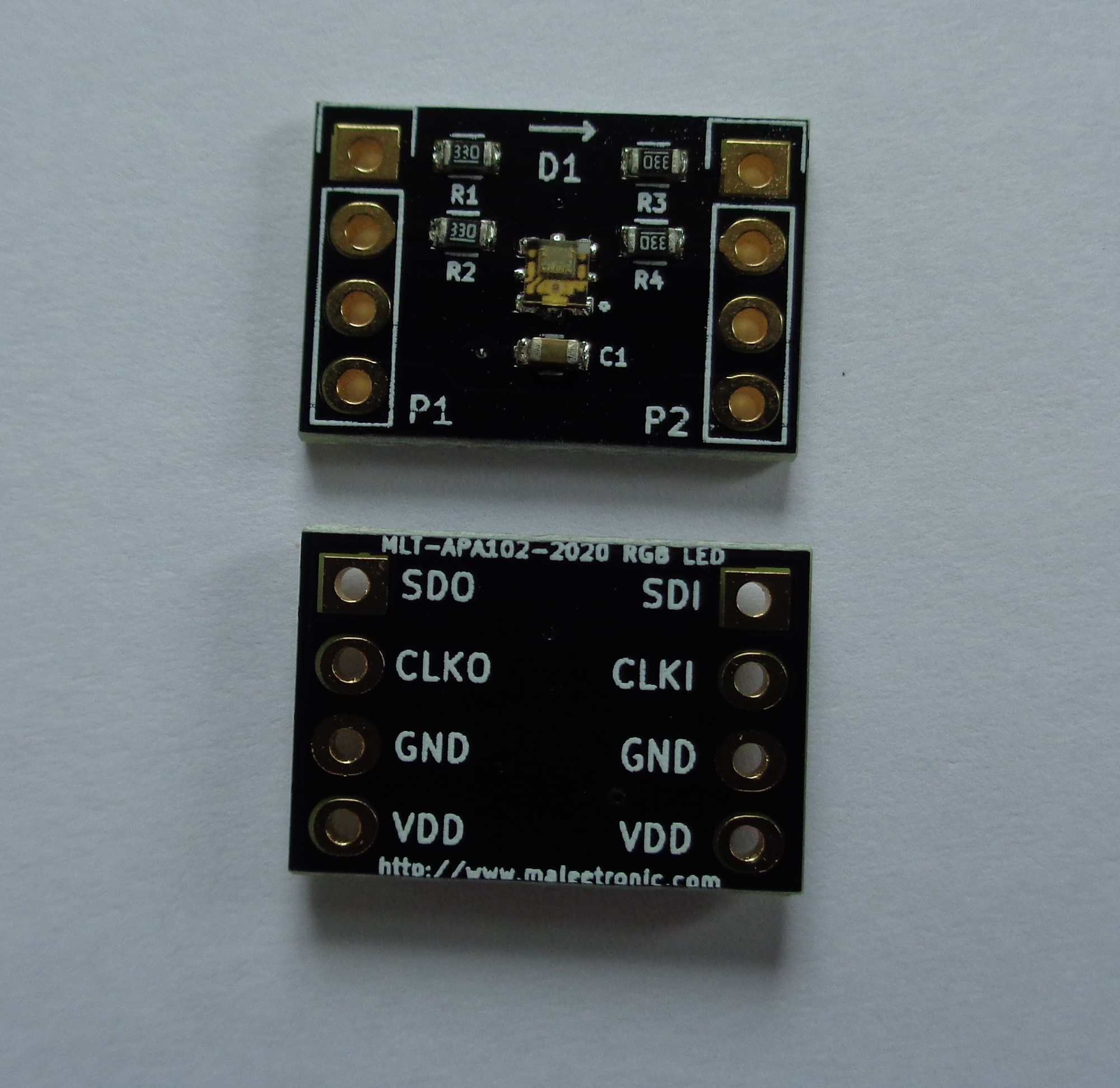

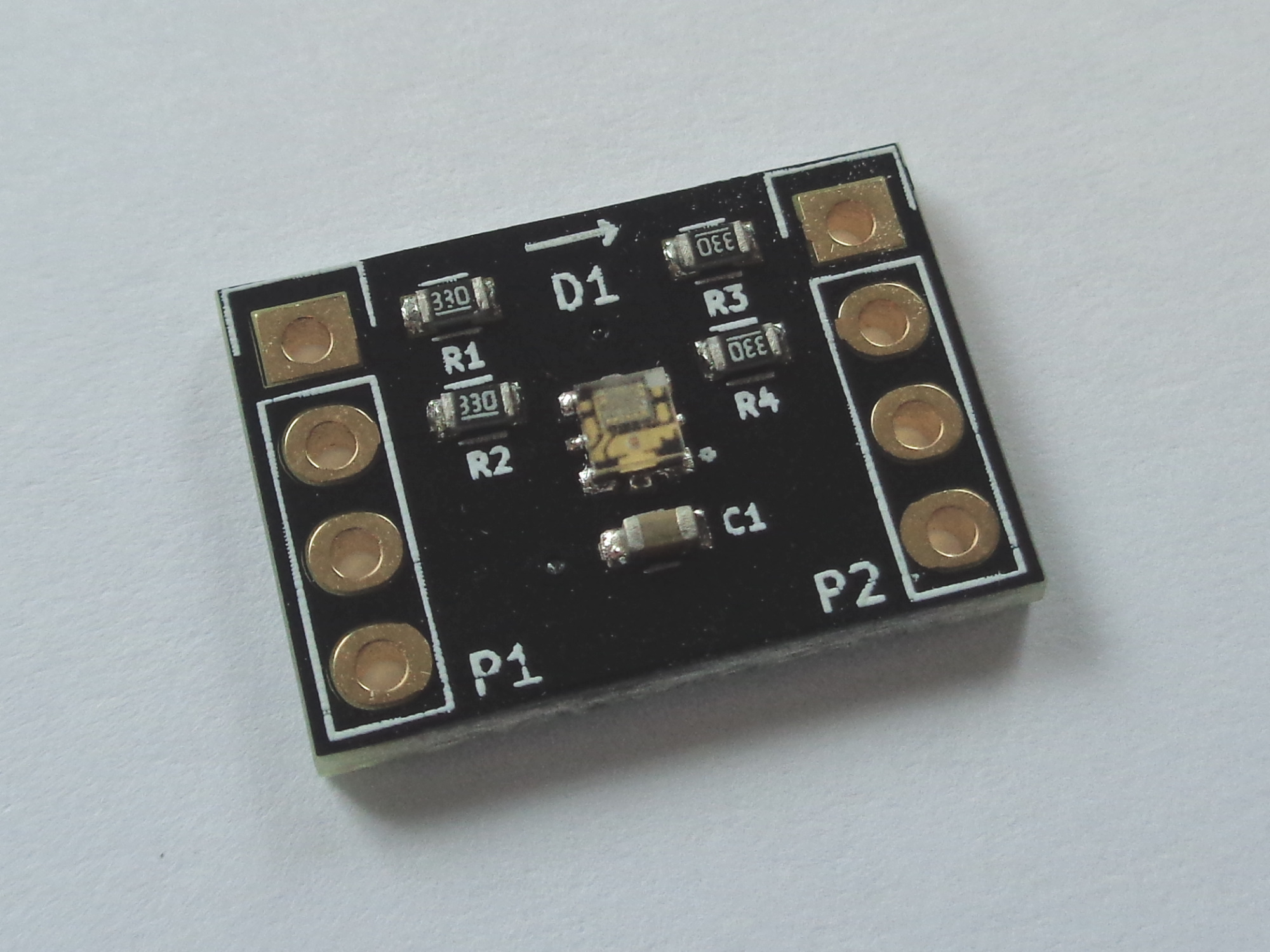

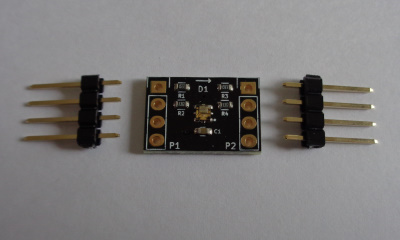

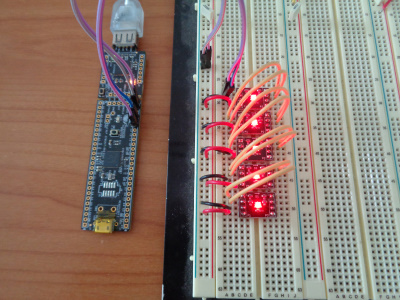

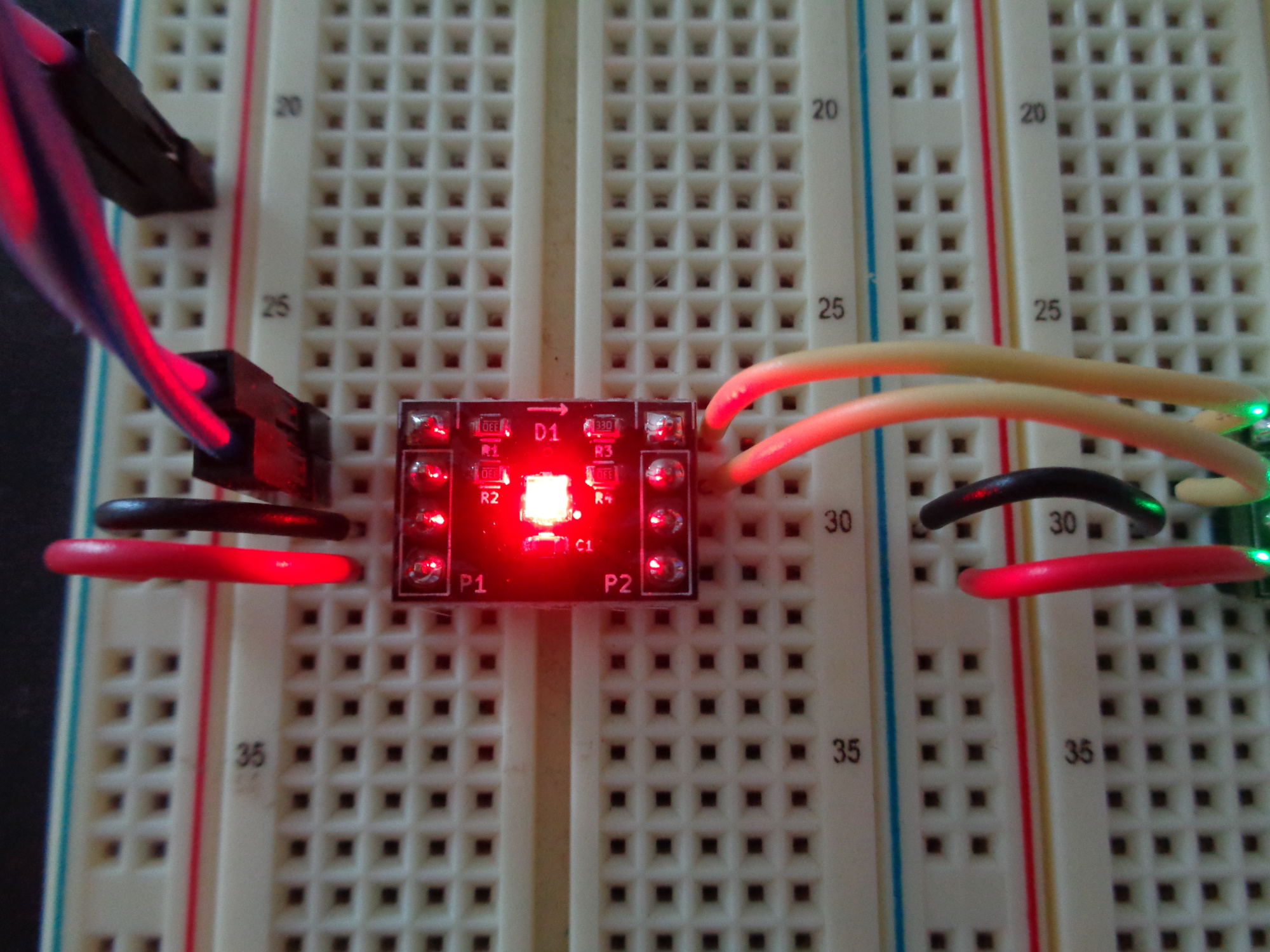

APA102-2020 single LED Board [ available ]

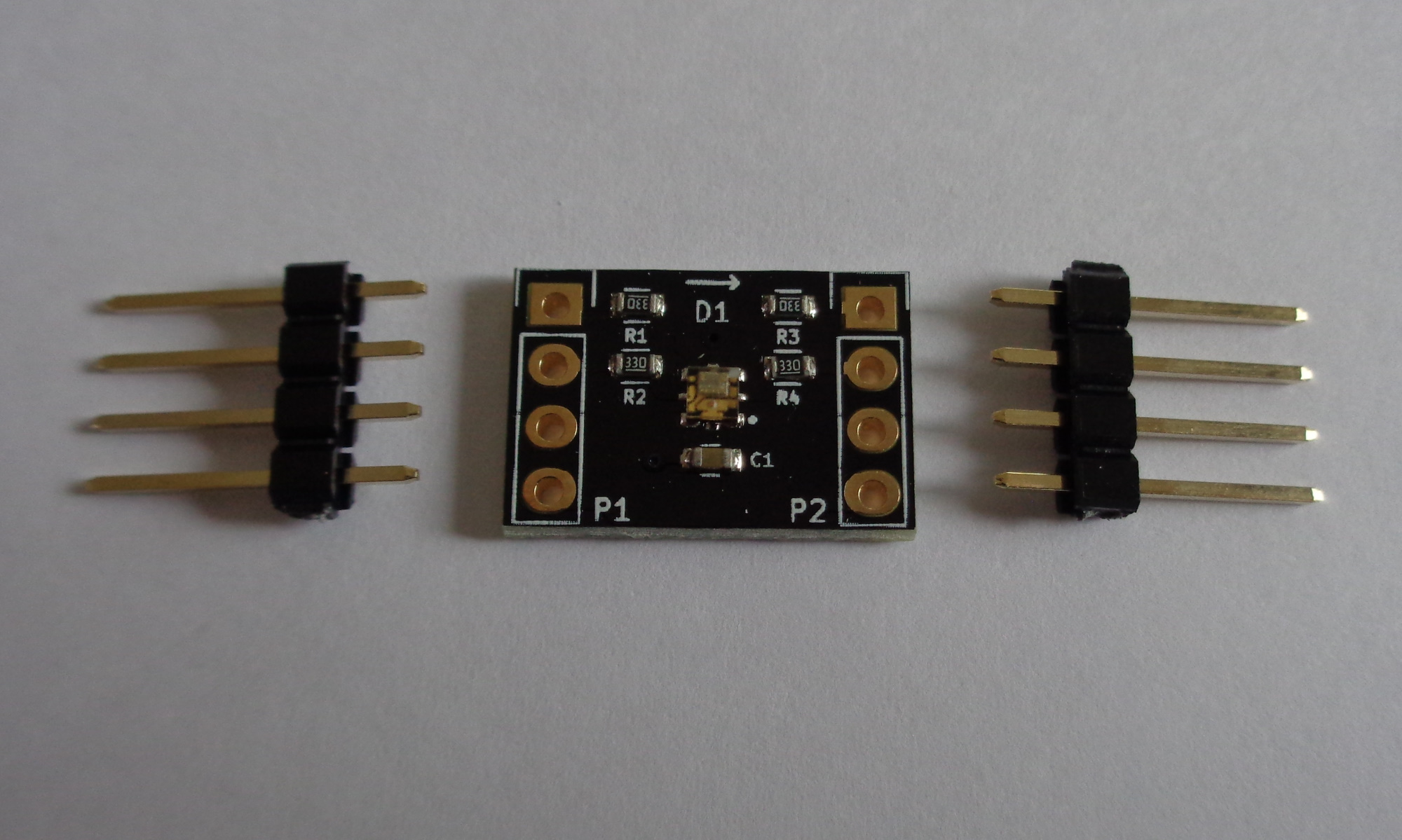

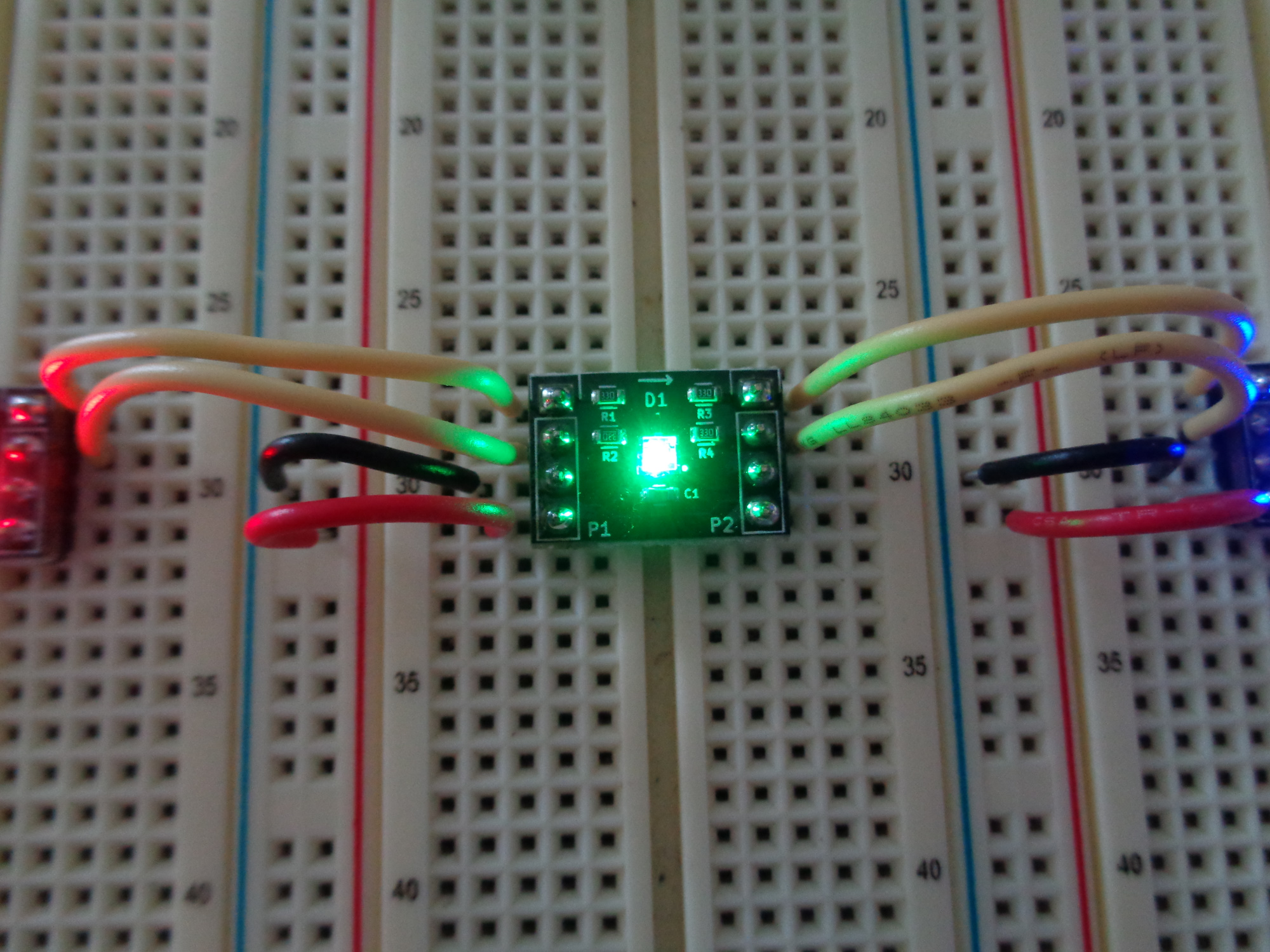

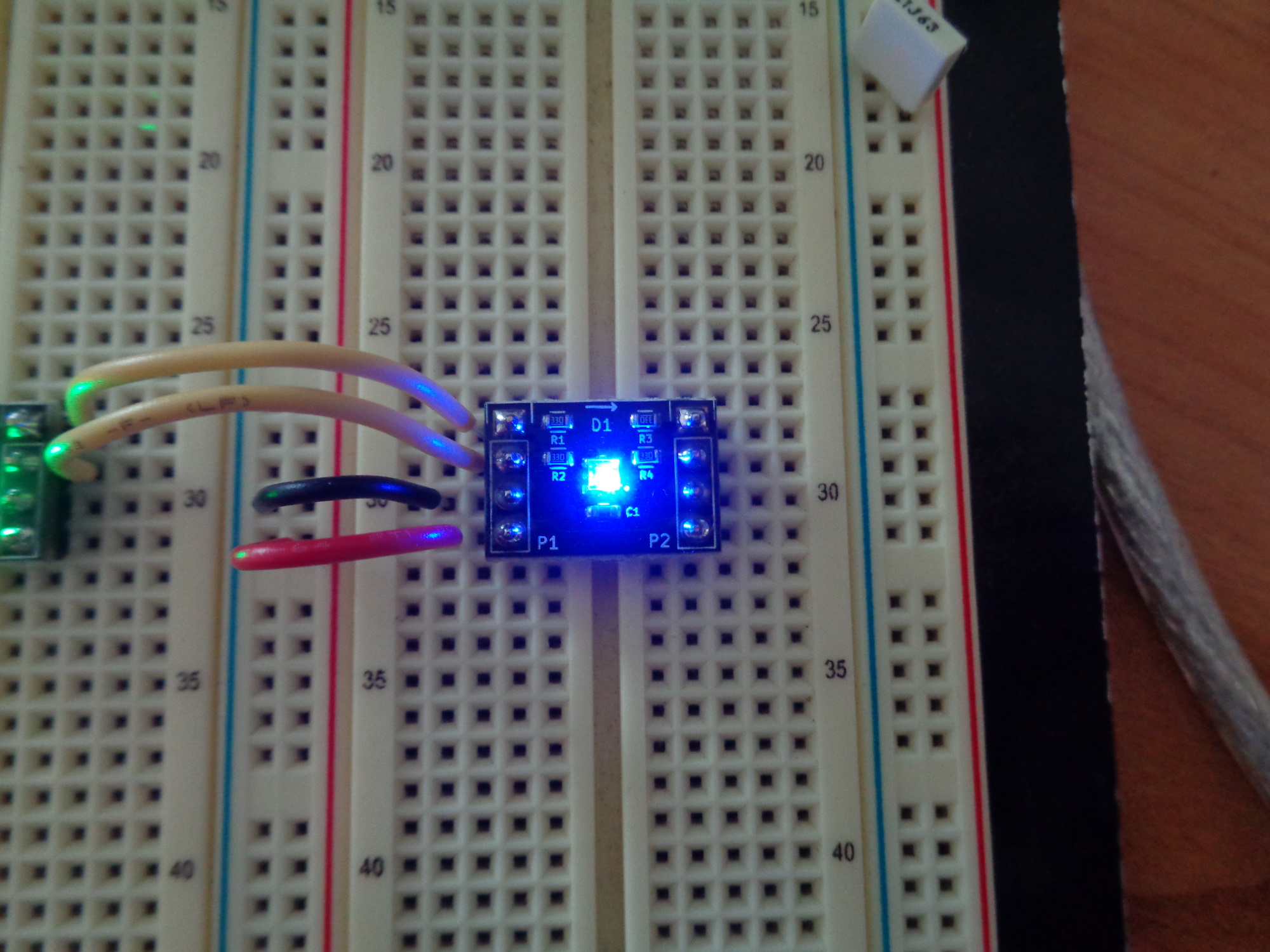

A board with a single APA102-2020 LED. The LED is very useful for status displaying, especially when using multiple RGB LEDs. No matter how many LEDs are used in the system, it requires only two pins to control them all. A serial data signal and a clock signal.

Arduino users can use the “FastLED” library to control this LED.

A very helpful investigation I have found here in the link to Tim’s Blog:
Tim's Blog - Understanding the APA102 "Superled"

Photos:

Downloads:
Click here to download the user manual for the single LED board. [700 kB]
Click here to download the KiCAD project files. [40 kB]

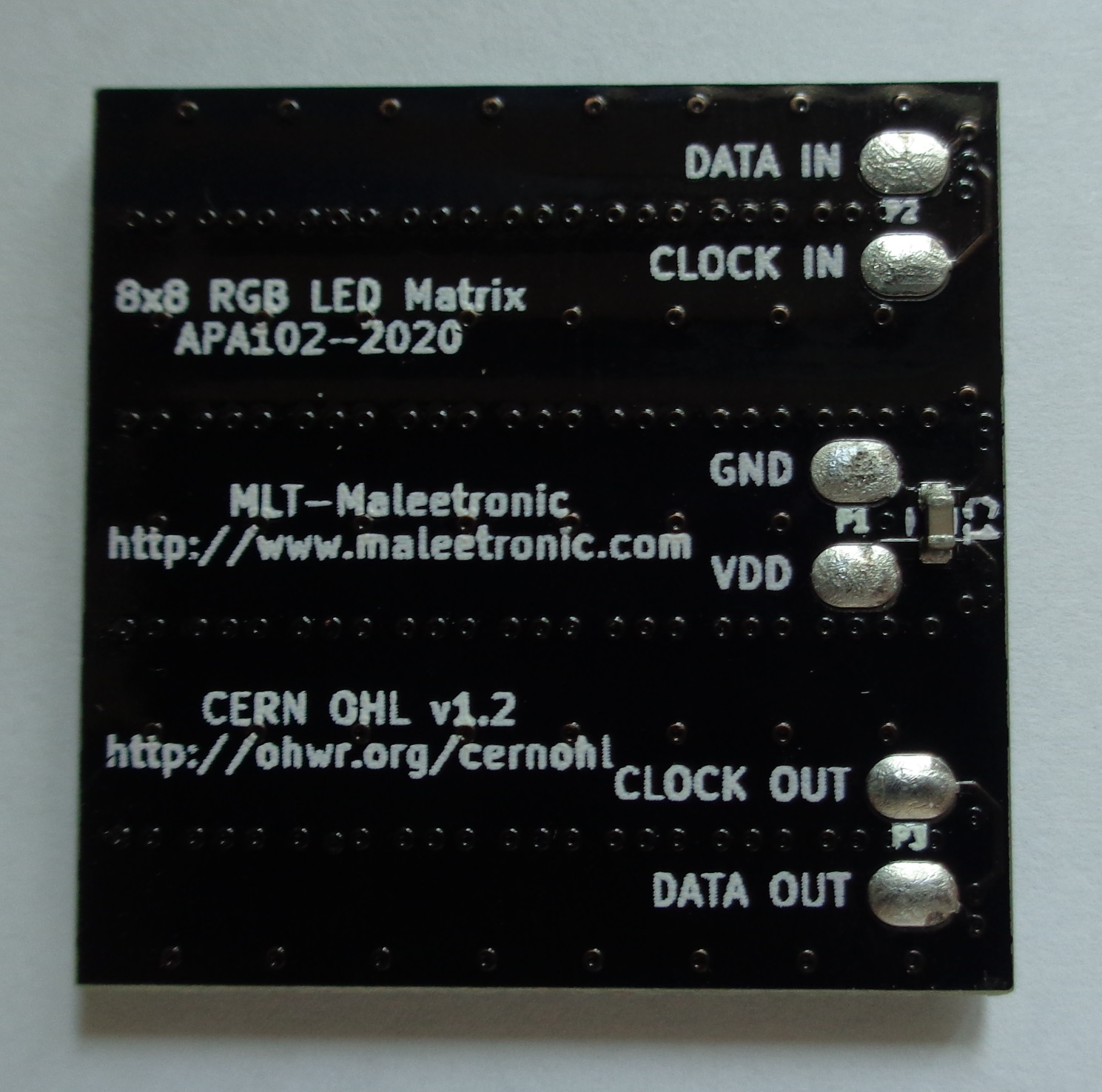

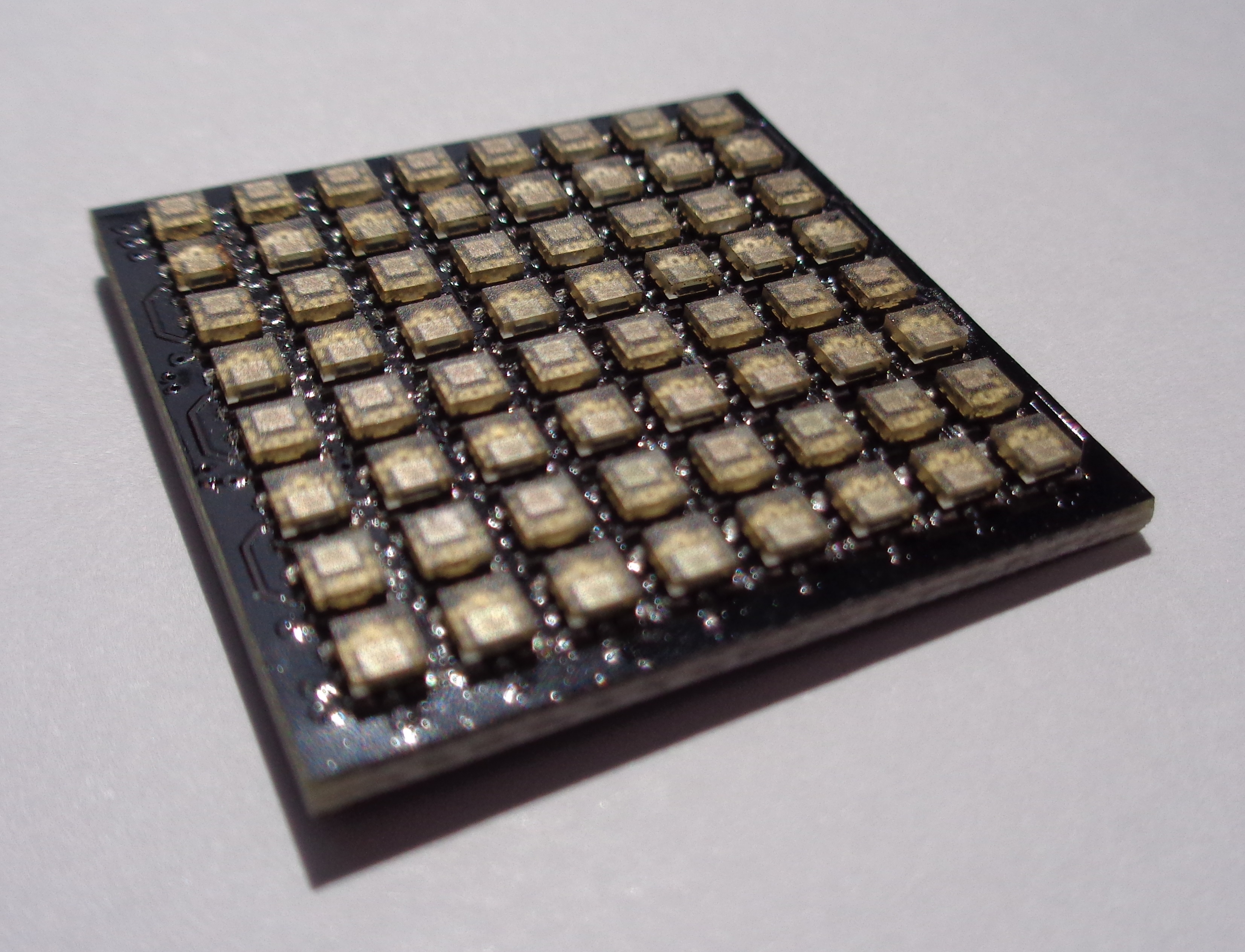

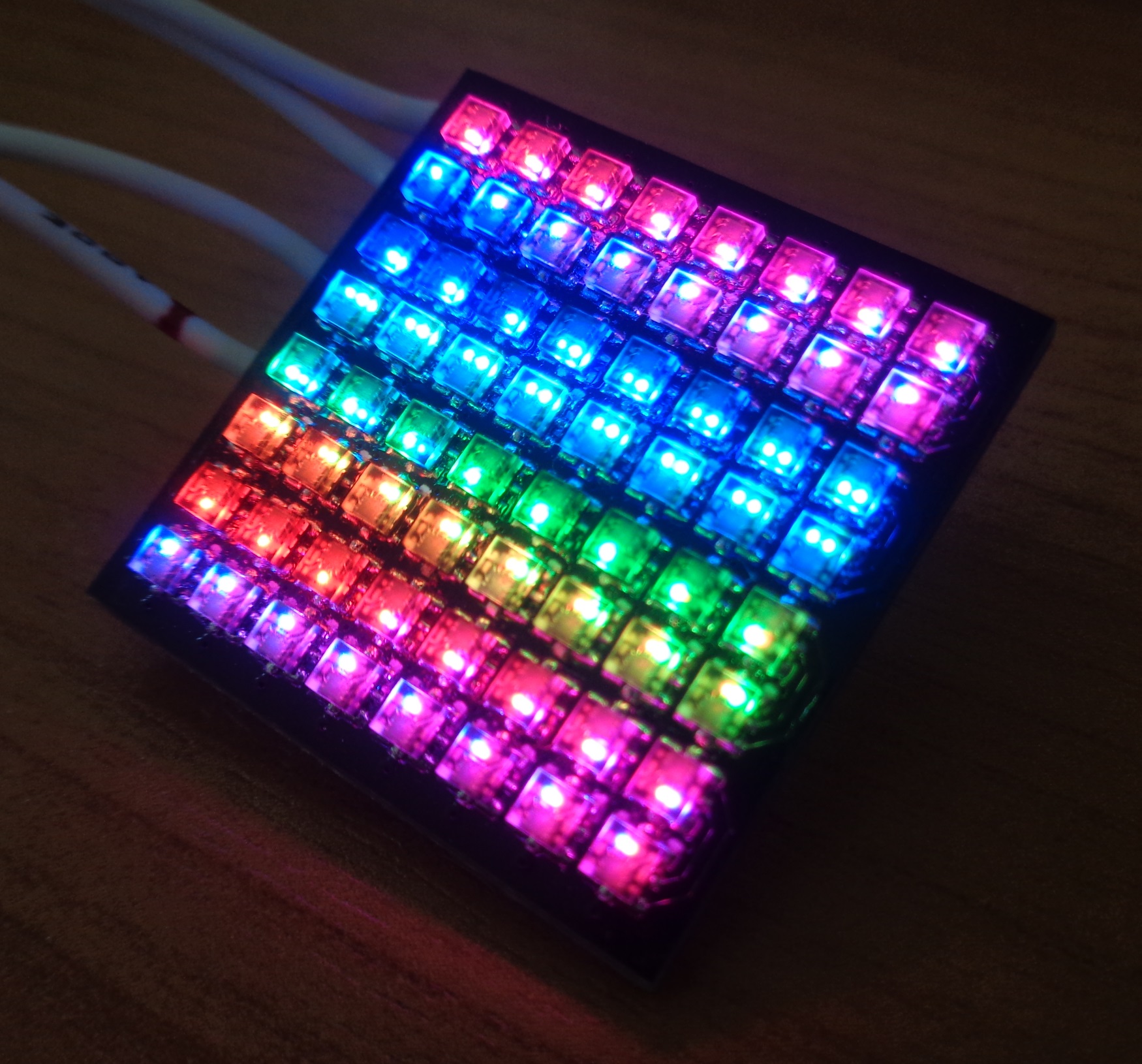

APA102-2020 64 LED Matrix [ obsolete ]

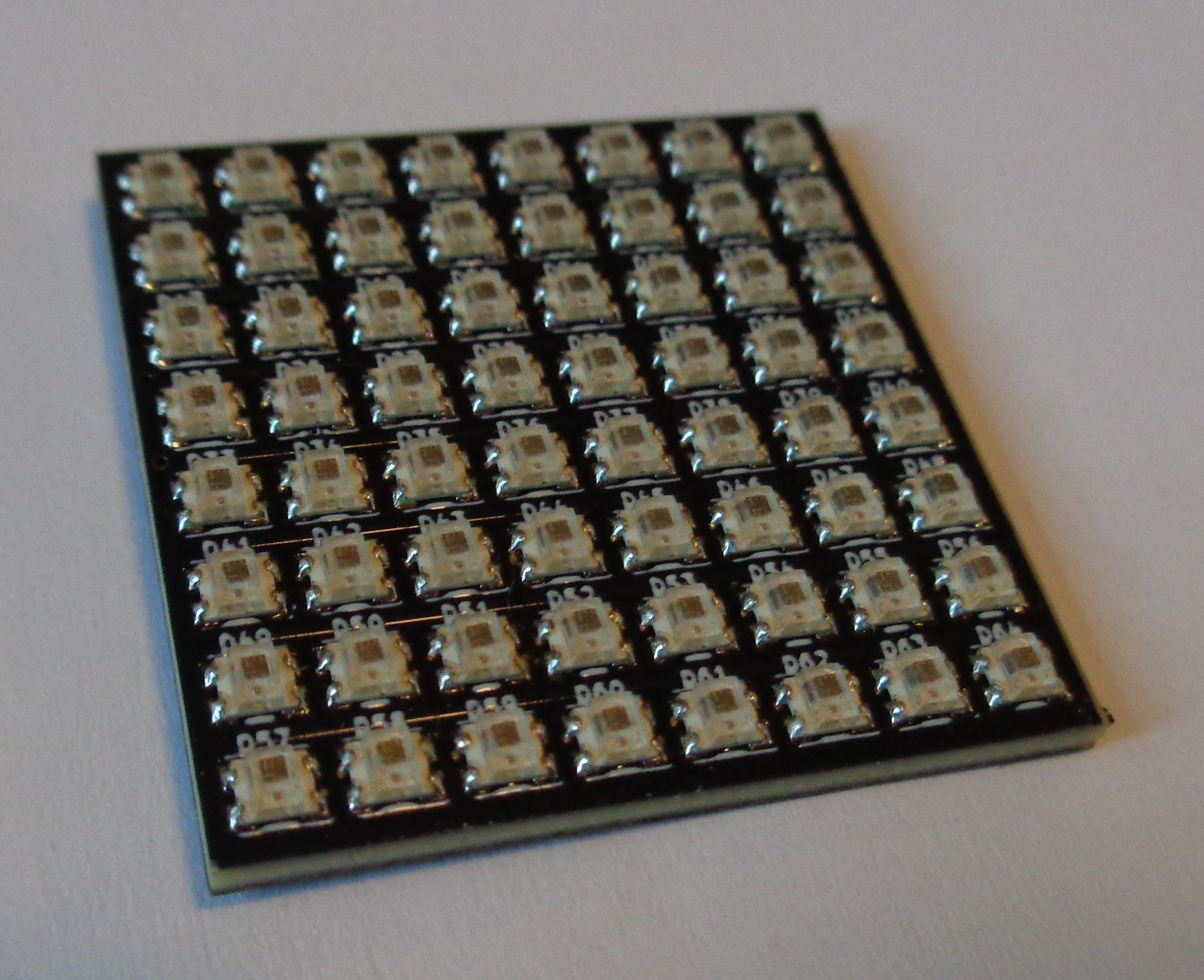

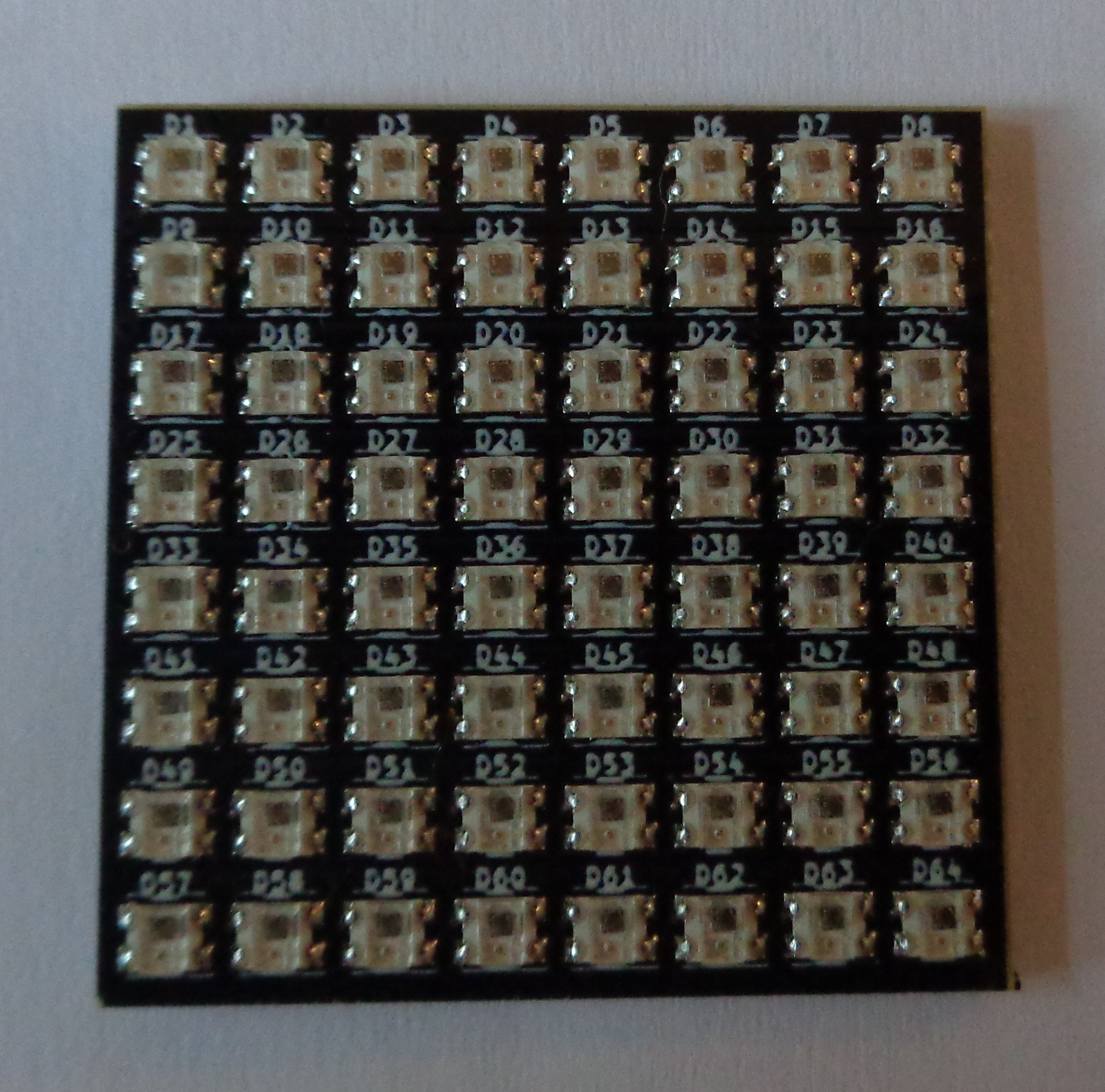

A board with 64 (8×8) APA102-2020 LEDs in 120 x 120 mil grid spacing.

This board is obsolete since the WS2812B was available in 2x2 mm package. But I will remain it online, at least for a while.

Photos:

Downloads:
Click here to download the user manual for the LED matrix board. [1.2 MB]
Click here to download the PDF schematic for the LED matrix board. [200 KB]
Click here to download the source files for the LED matrix board. [500 KB]

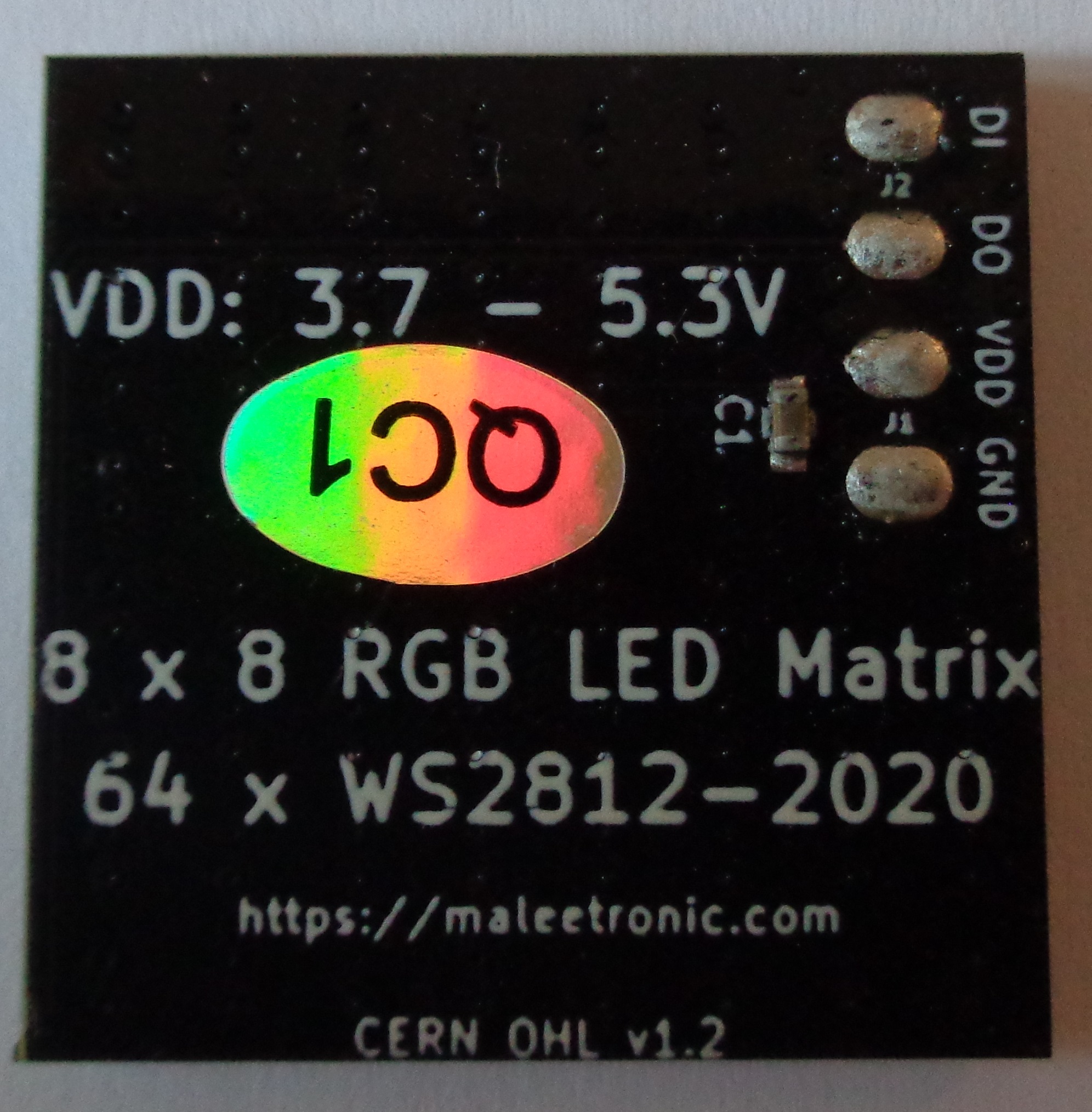

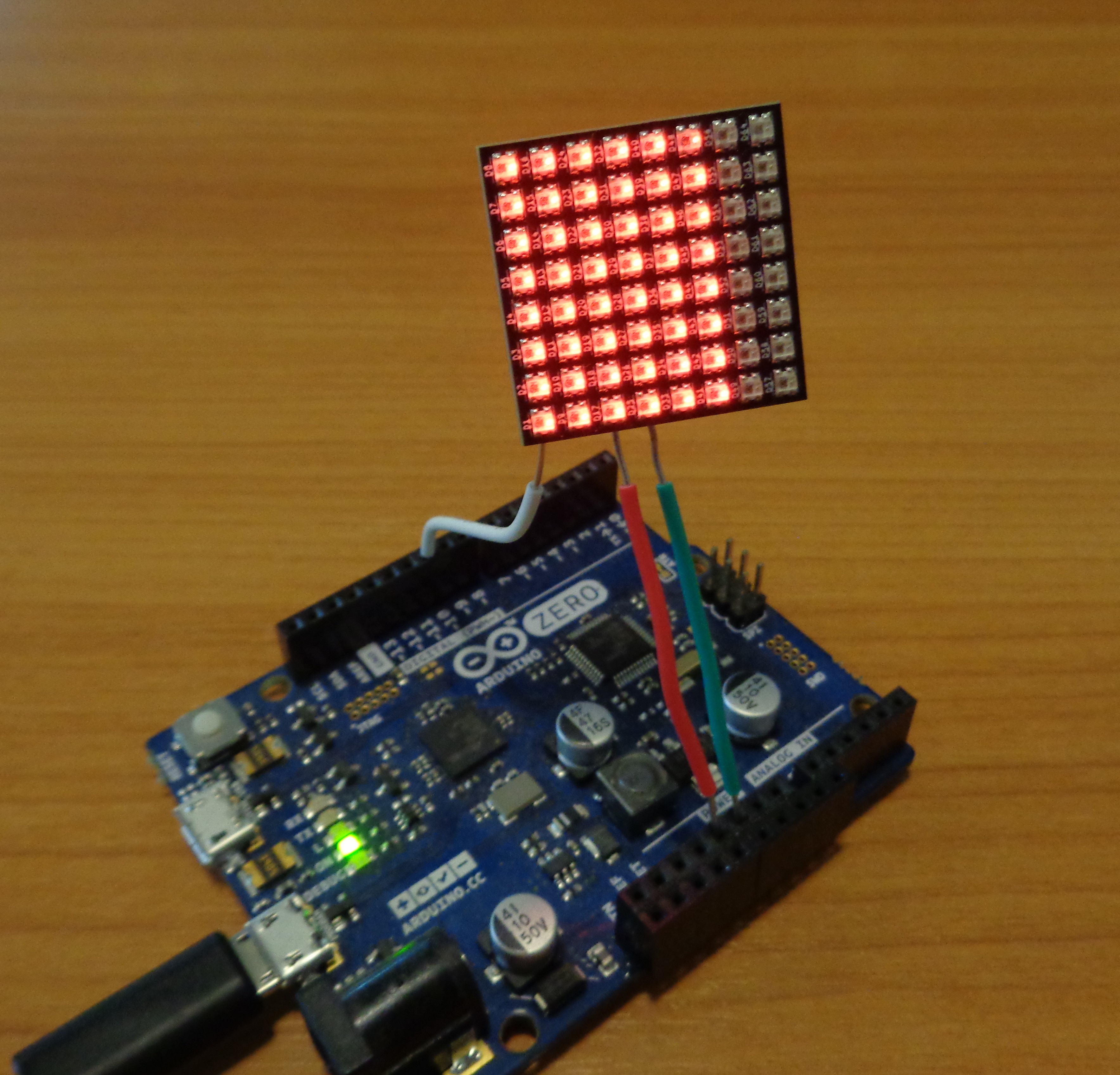

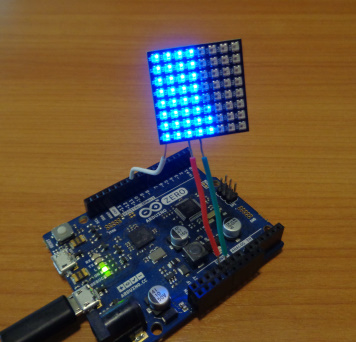

WS2812B-2020 64 RGB LED Matrix [ available ]

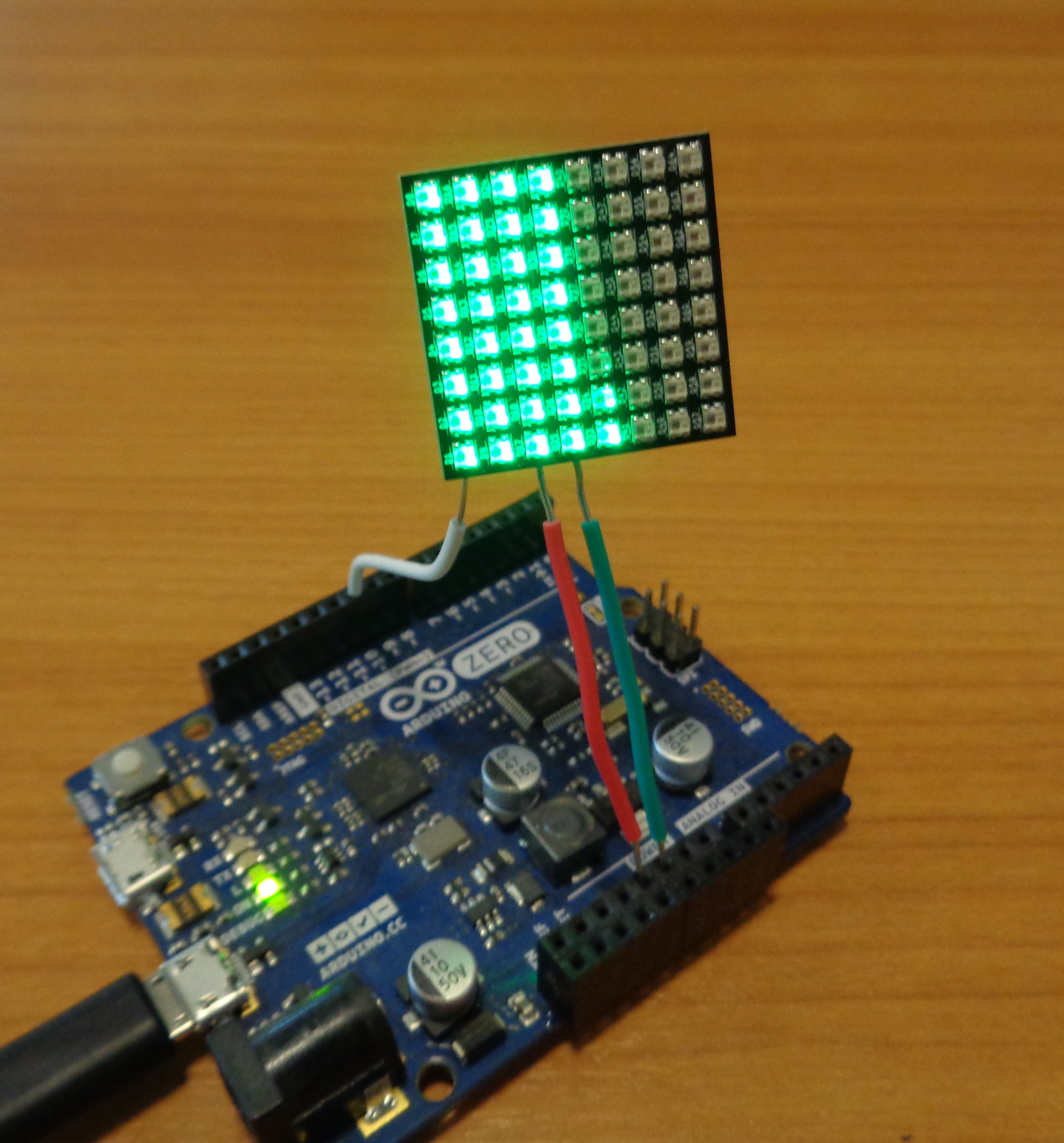

A board with 64 (8×8) WS2812B-2020 LEDs with 120 mil grid spacing. This is the new version of the 64 RGB LED board. It uses the WS2812B-2020 LED instead of the APA102-2020. It also can be tiled together maintaining the same grid. The footprint is also 2×2 mm, the LEDs can be controlled by a single wire instead of 2.

Photos:

Downloads:
Click here to download the data sheet for the WS2812B-2020 LED. [590 KB]
Click here to download the user manual. [1.7 MB]
Click here to download the KiCAD project files. [220 KB]

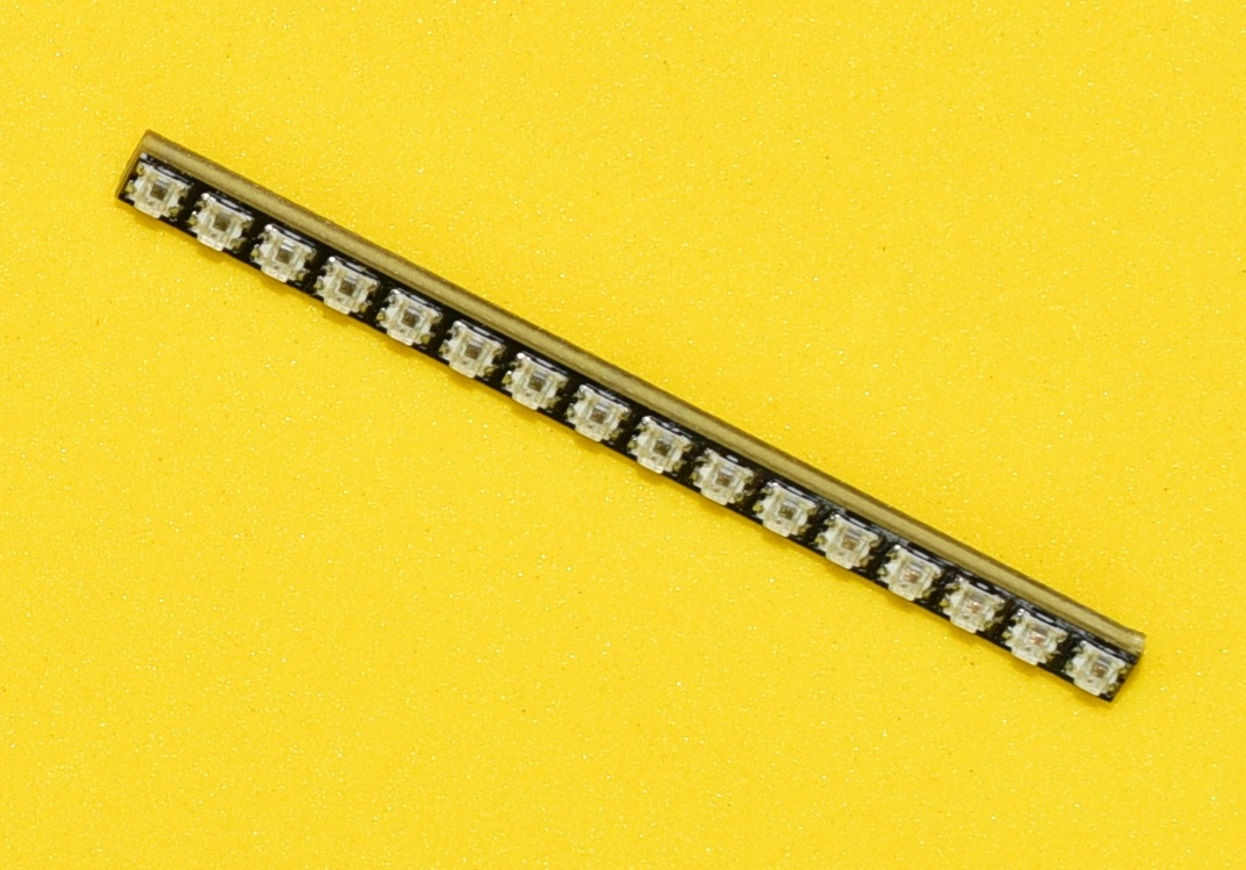

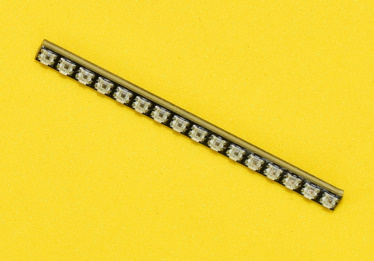

WS2812B-2020 16 RGB LED Bar Graph [ available ]

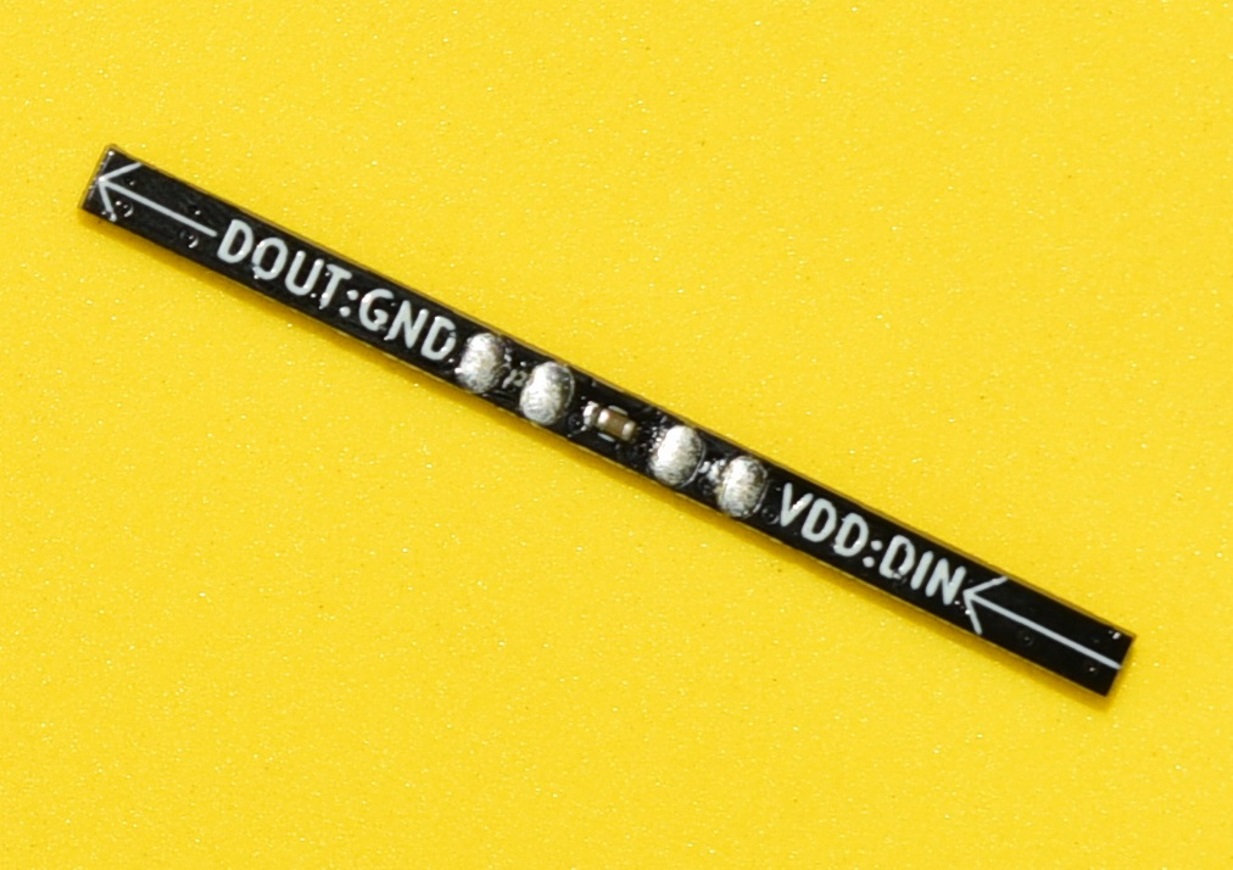

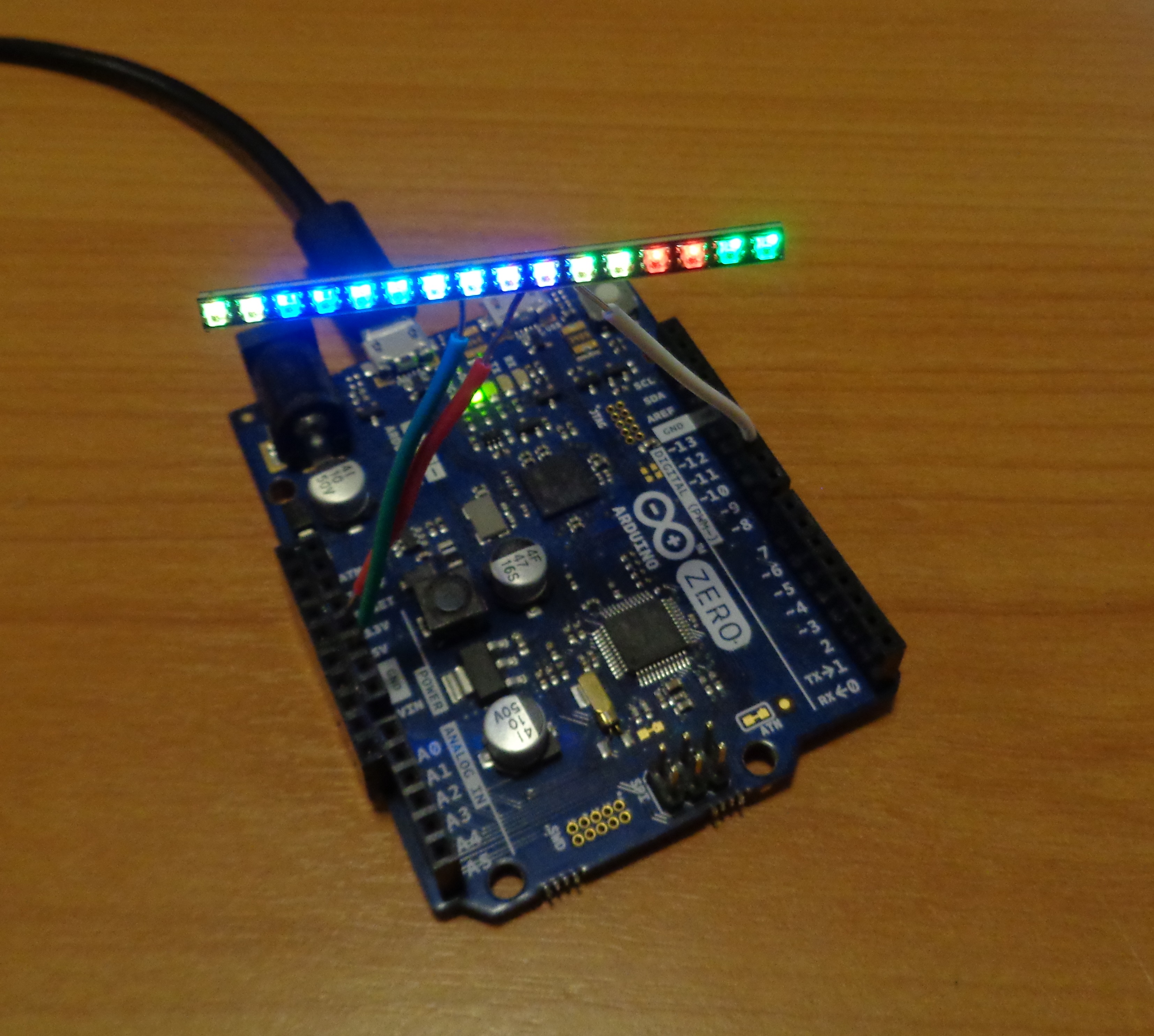

A board with 16 RGB LED WS2812B in a row.

Photos:

Downloads:

Click here to download the manual. [570 KB]
Click here to download the KiCAD project files. [90 KB]
