Optical Sensor
MLT-OPB9000 [ available ]
The MLT-OPB9000 is a small module based on the SMD Reflective optical sensor from TT Electronics. This module can be used in many non-contact position sensing applications as well for presence detection. It is an ideal replacement of mechanical end switches and gives a non bouncing signal. For more details, please check out the board manual.
Photos:

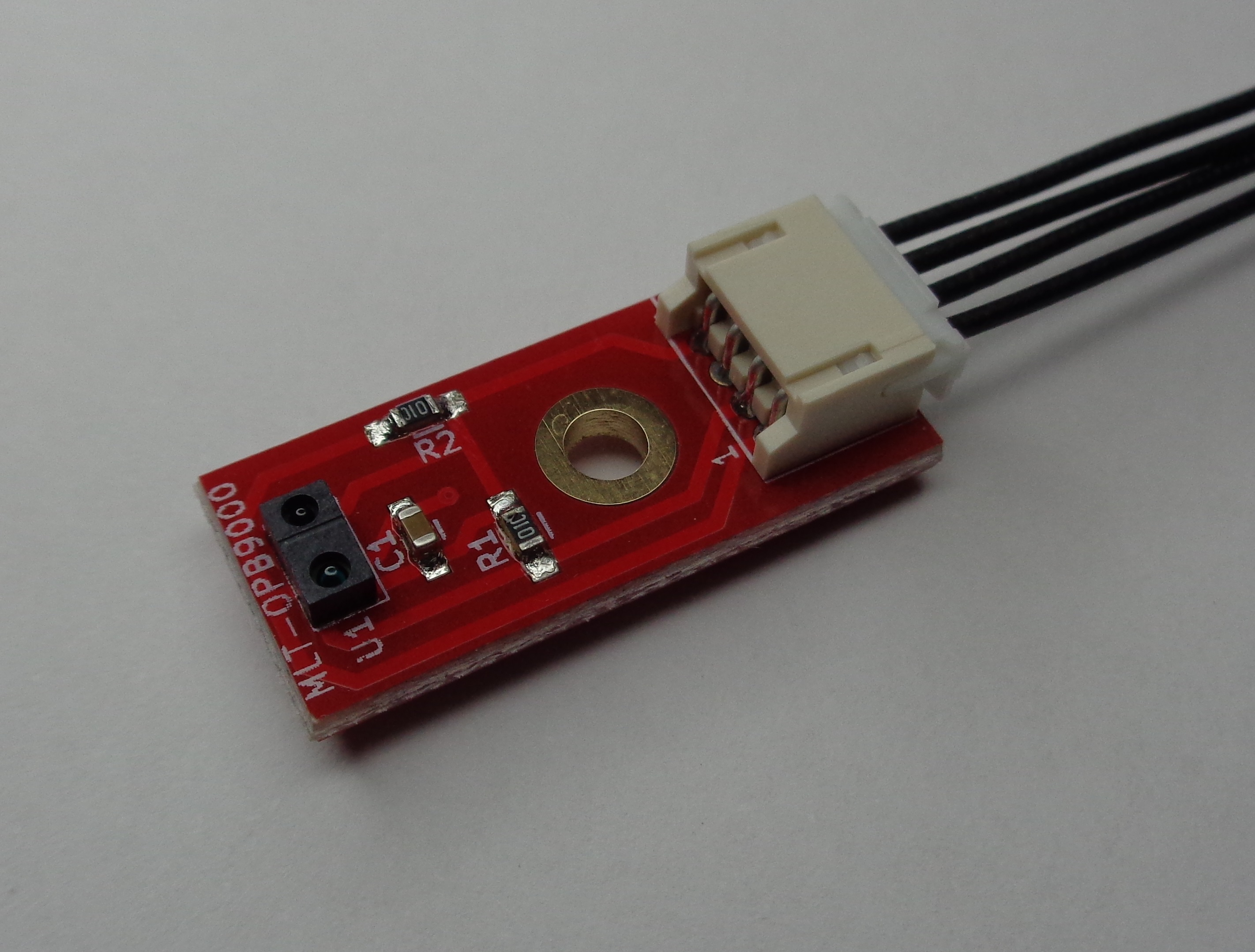

OPB9000

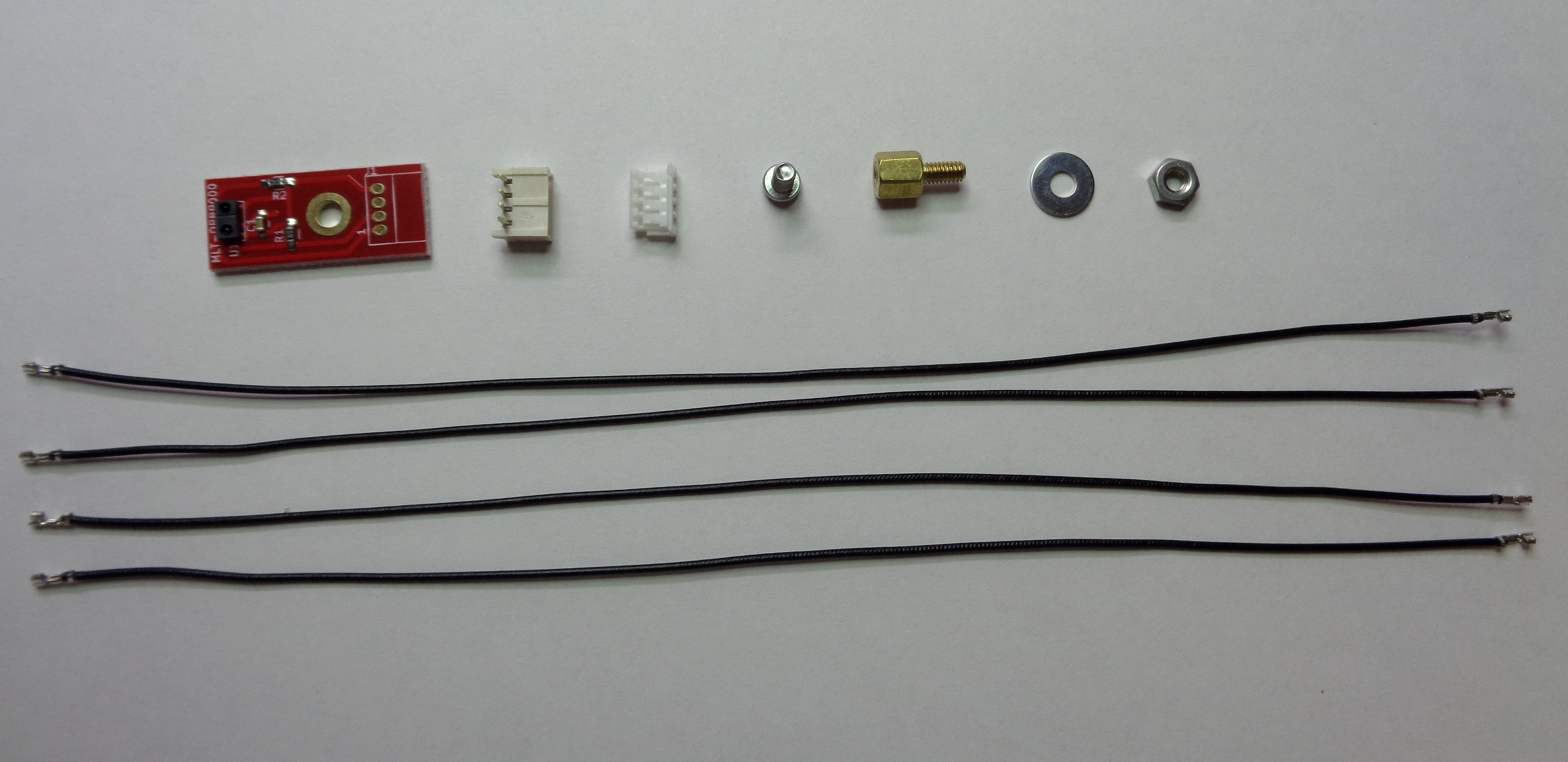

OPB9000

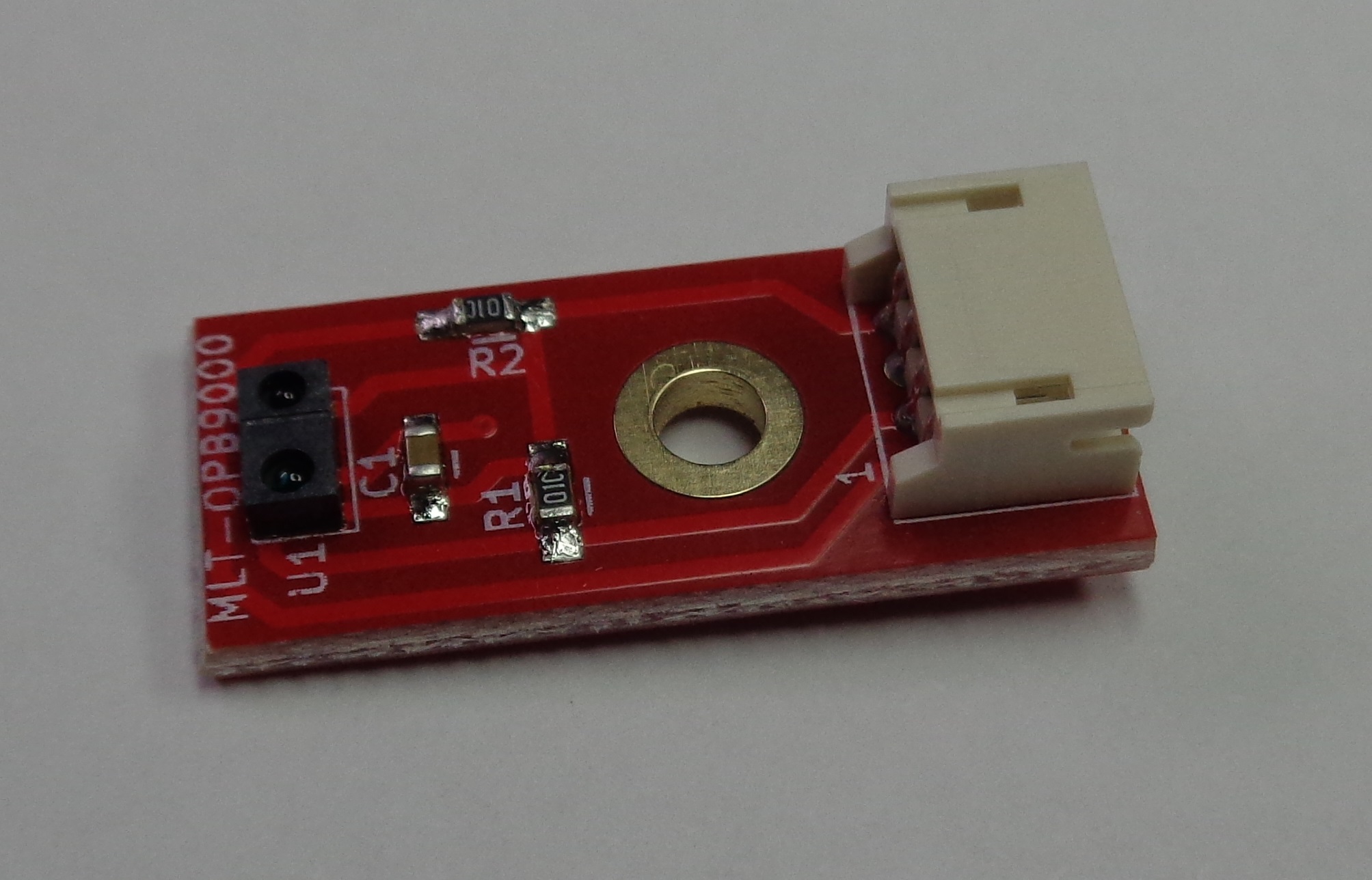

OPB9000

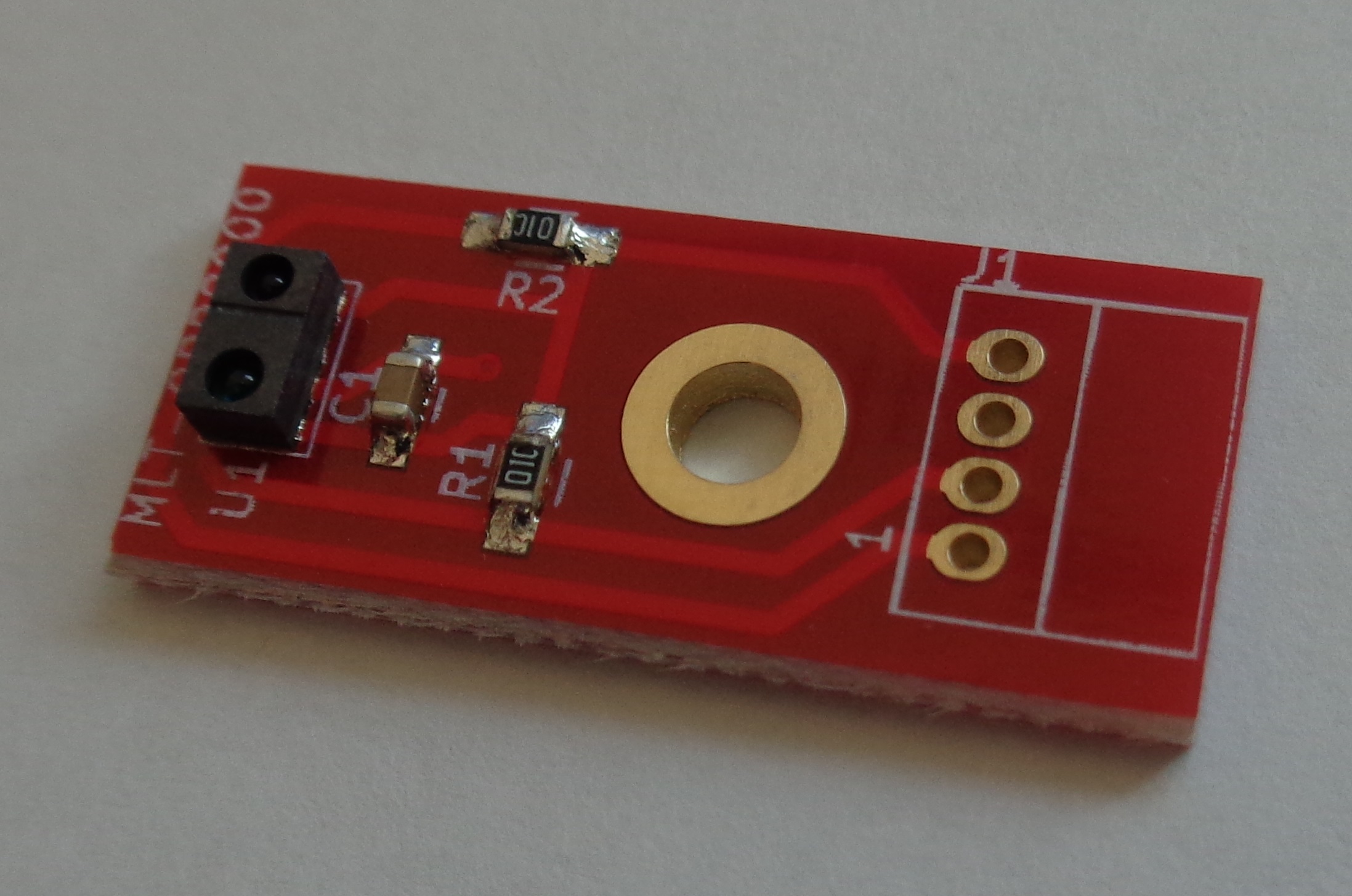

OPB9000

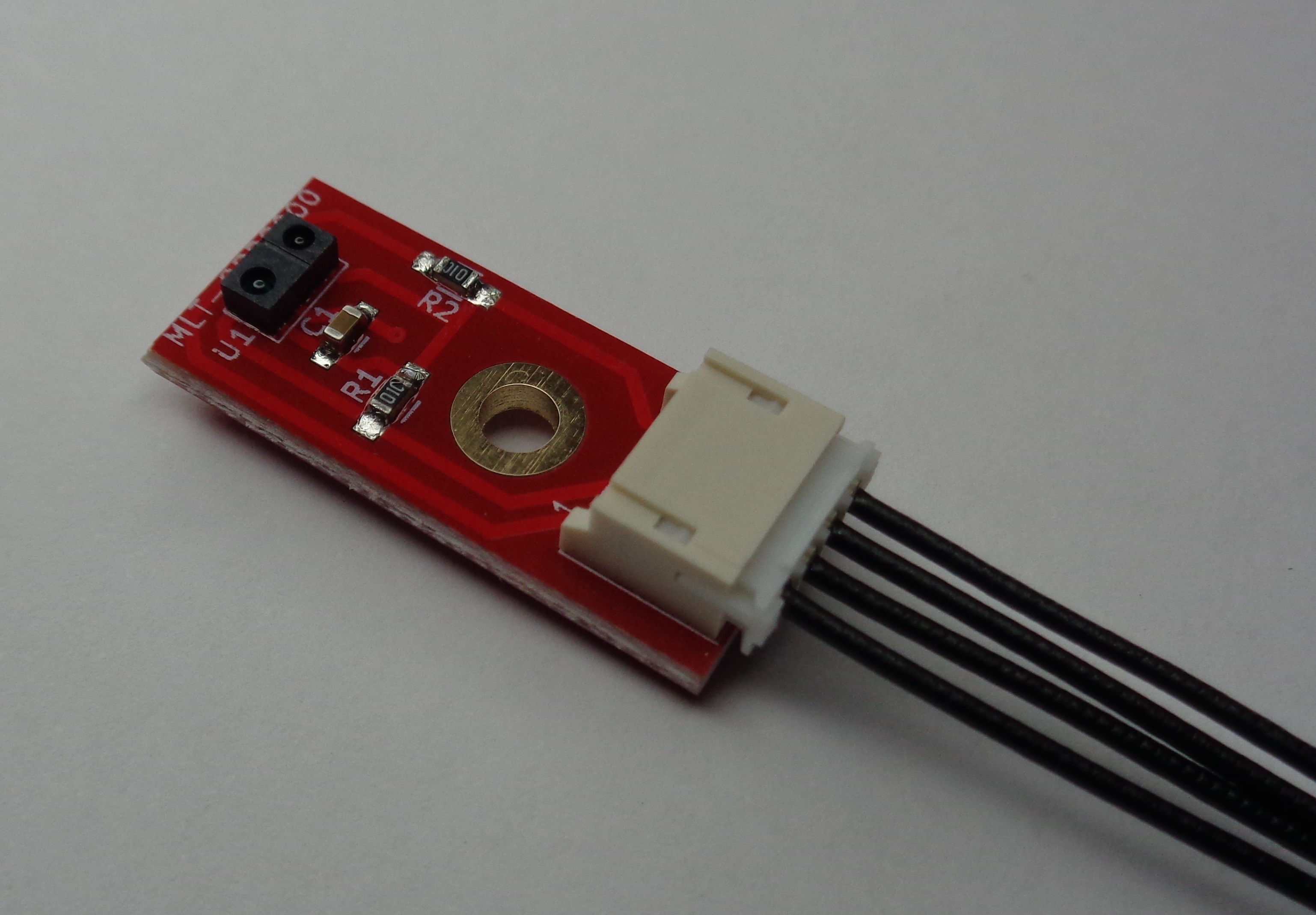

OPB9000

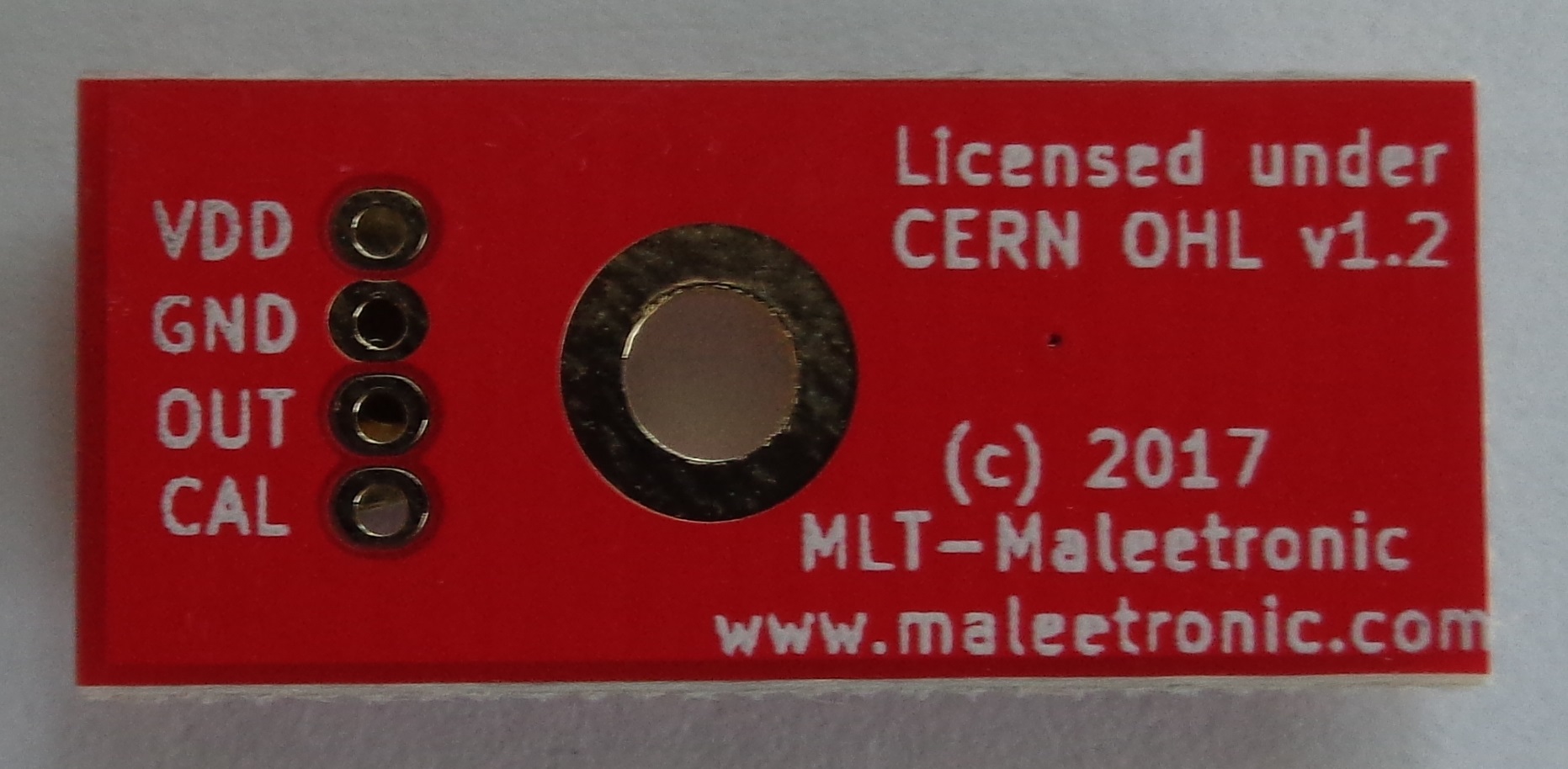

OPB9000
Downloads:
Click here to download the board manual. [850 KB]
Click here to download the data sheet of the OPB9000 sensor. [1.4 MB]
Click here to download the KiCad design files. [220 KB]
